Blue Sea 4180 Backlit Push Button Switch OFF-ON - 15A
4180 Backlit Push Button Switch OFF/ON - 15A

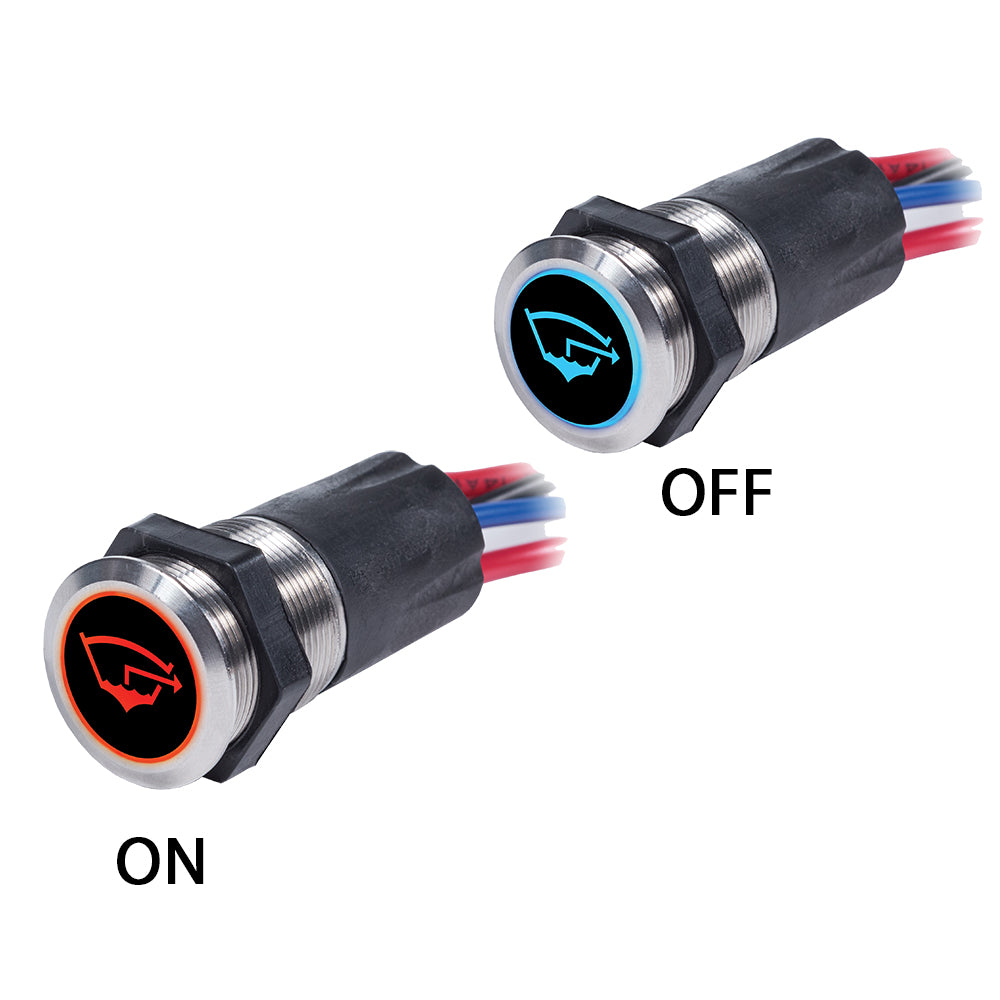

Backlit button is blue when OFF and red when ON
Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
Additional 50 ICON label kit sold separately
Amperage: 15A @ 12V DC
Nominal Voltage: 12V DC
Maximum Voltage: 15V DC
Maximum LED Operating Current: 20mA
Switching Cycles: 10,000
Temperature Range: -20°C to 55°C
Termination: 3" - Bare Wire Pigtail
Wire Size: Black & Blue Wires 18 AWG / Red & Red/White Wires 14AWG
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer :Blue Sea Systems Manufacturer Part No :4180 UPC :632085041809
