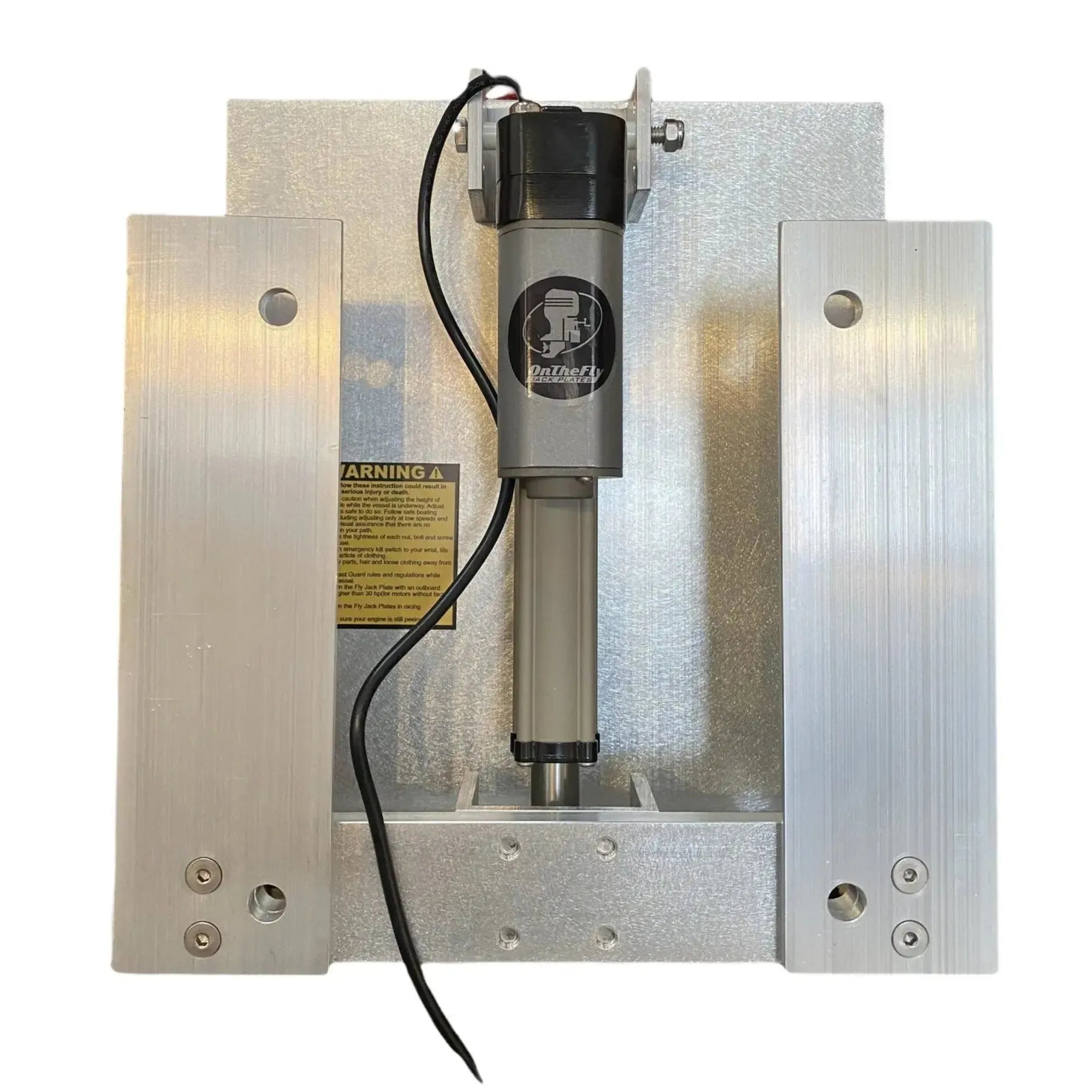

Electric On The Fly Jack Plate is the quietest jack plate on the market.
Our jack plates can be raised and lowered by an up/down push button while on the water within seconds from top to bottom. We have made it simple for YOU! Just mount the jack plate, connect it to the battery with our easy quick connectors, and go!

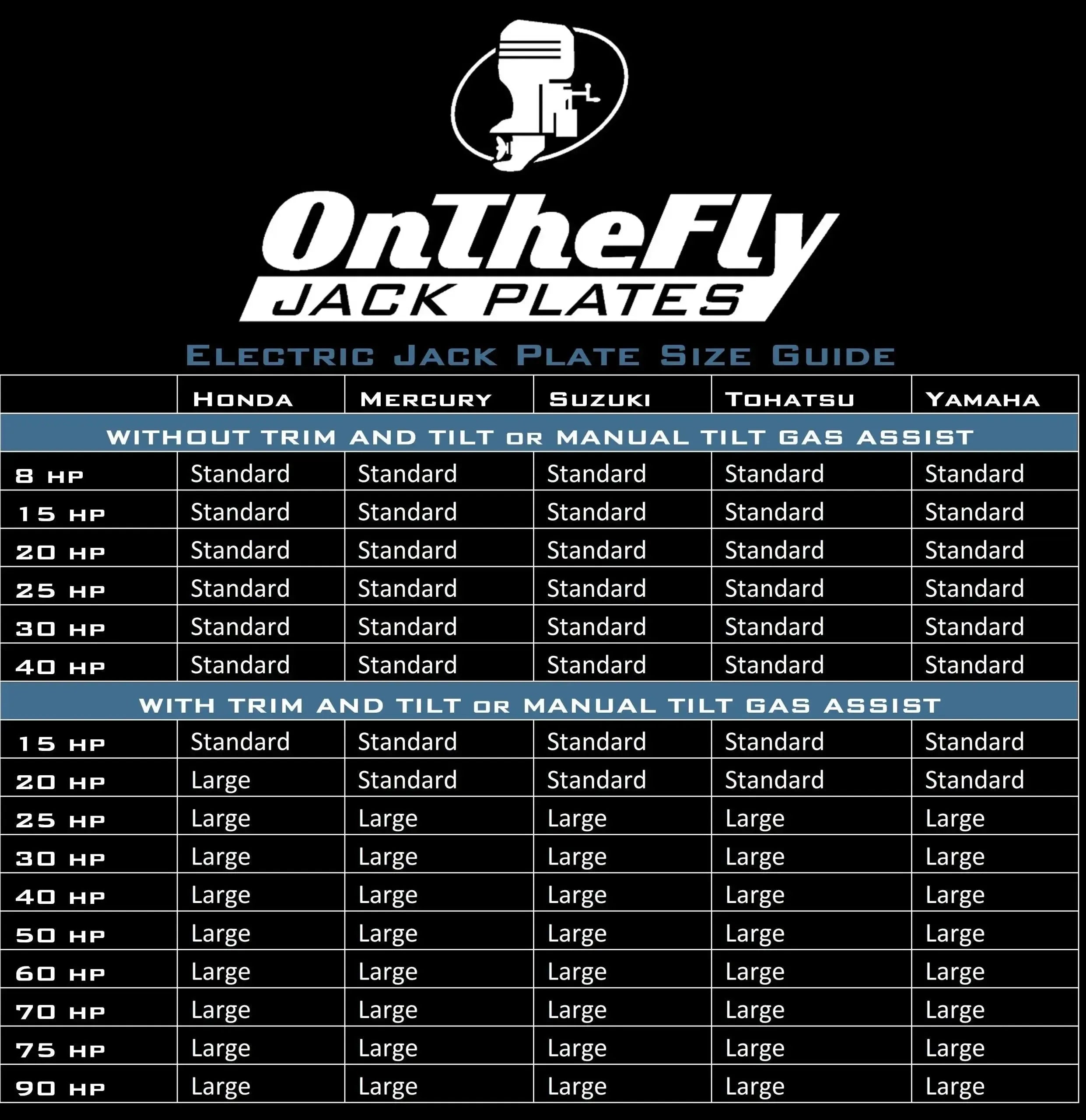

- Standard size is approved for up to 40hp motors (for motors without factory trim and tilt or standard BIA bolting pattern)
- Large size is approved for motors up to 90hp(for motors with factory trim and tilt or standard BIA bolting pattern)
- Works with 0-20hp motors with electric trim and tilt

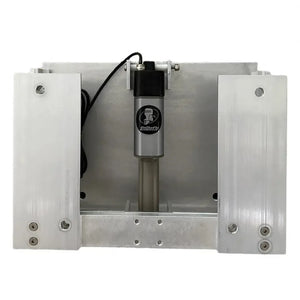

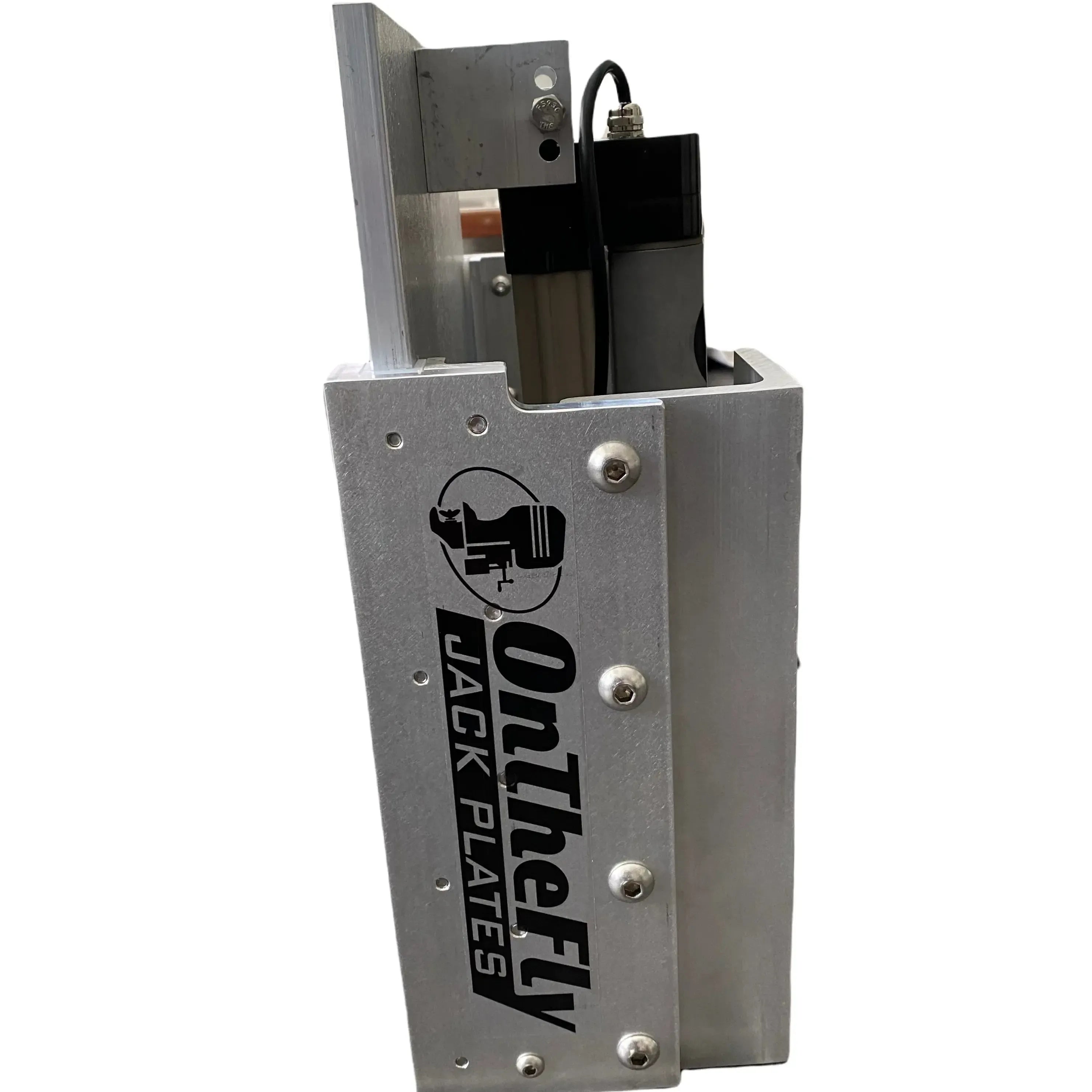

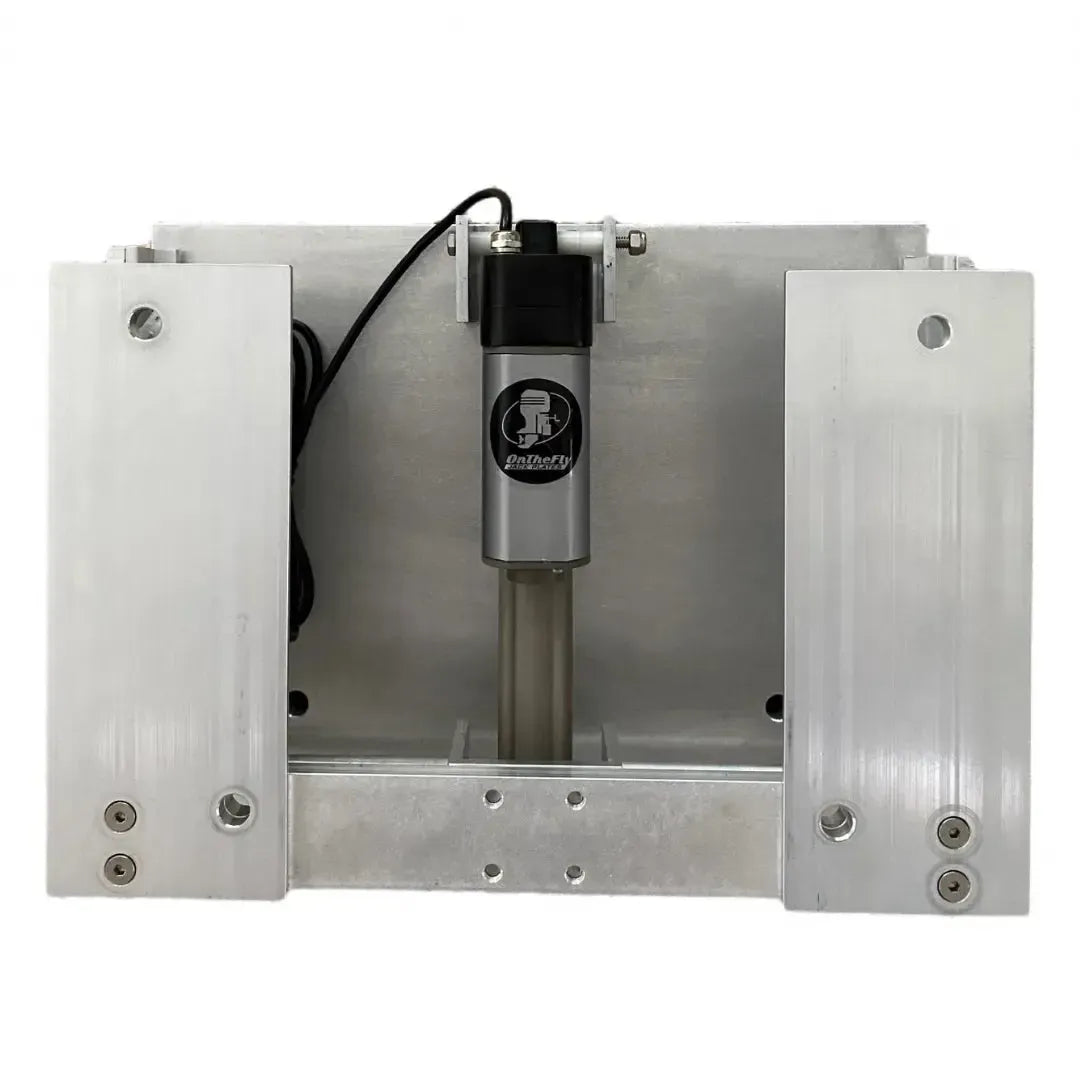

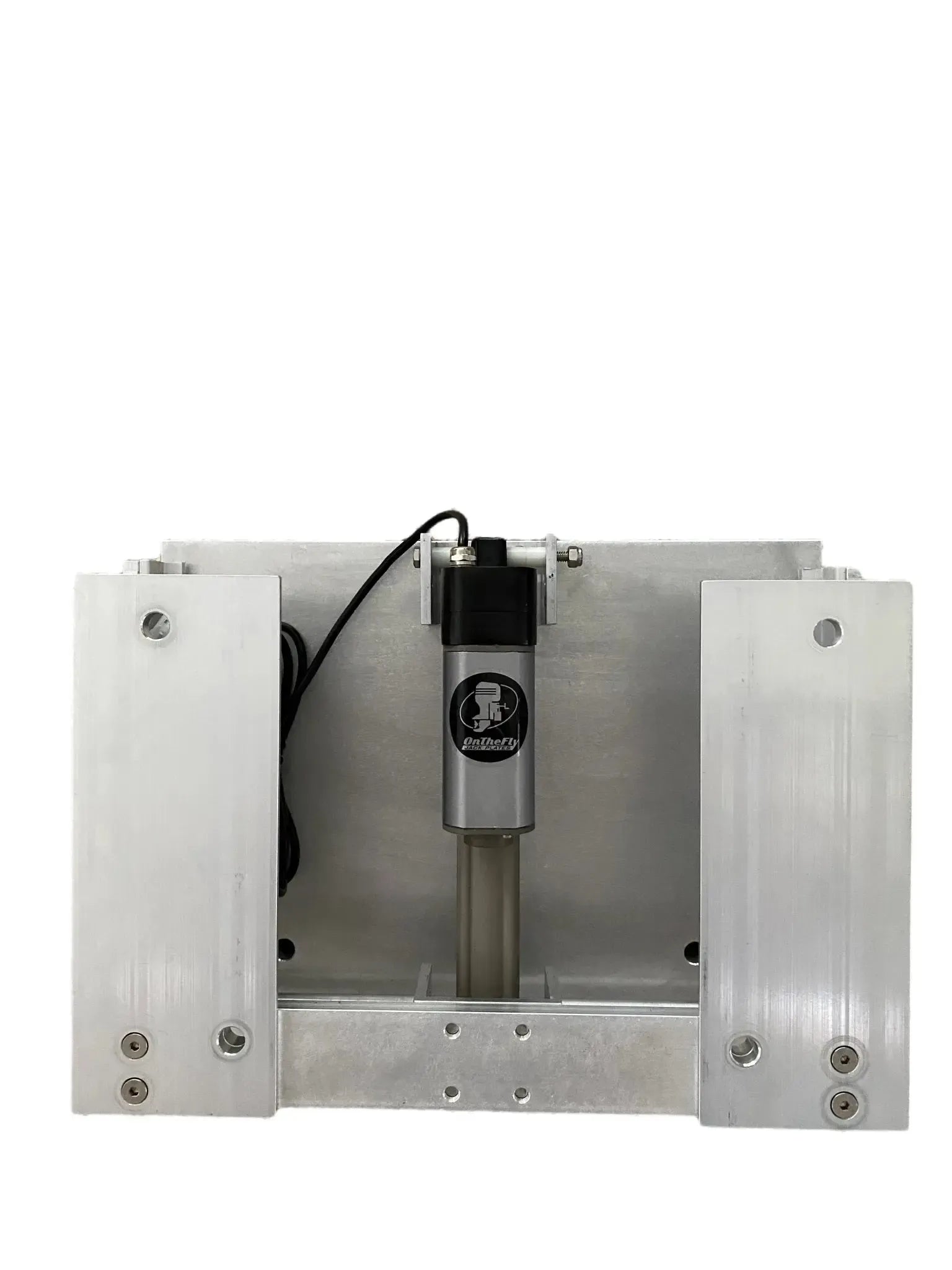

- Our electric actuator mounts inside the jack plate housing
- 3 year warranty on the jack plate housing
- 1 year warranty on the electric actuator
- Pre-drilled for transom mounting (transom side pre-drilled holes are 8 inches across and 8 1/4 inches down from each other)
- The Electric Standard On The Fly Jack Plate is easy to install and connect wires to the battery. It comes with easy weatherproof connecters. All you have to do is just push the 2 connectors together once you have your relay harness hooked up to the battery and your new jack plate is working.
- Jack Plate housing made is the USA.
WEIGHT: 23lbs
JACK PLATE DIMENSIONS:
• Height – 10 1/2”
• Width (Transom Side) – 12 ½”
• Width (Motor Side) – 13 ¼”
• Set Back – 5” (total length from of transom side to the back of the motor slide)
• Motor Plate Height – 12 ½”
• Motor Mounting Plate (Inside Brackets where the motor would mount) – 10 ¾”
MAX RISE (travel): 6 inches of travel. Plus, depending on where you mount the electric actuator you can get up to 8 inches of rise.

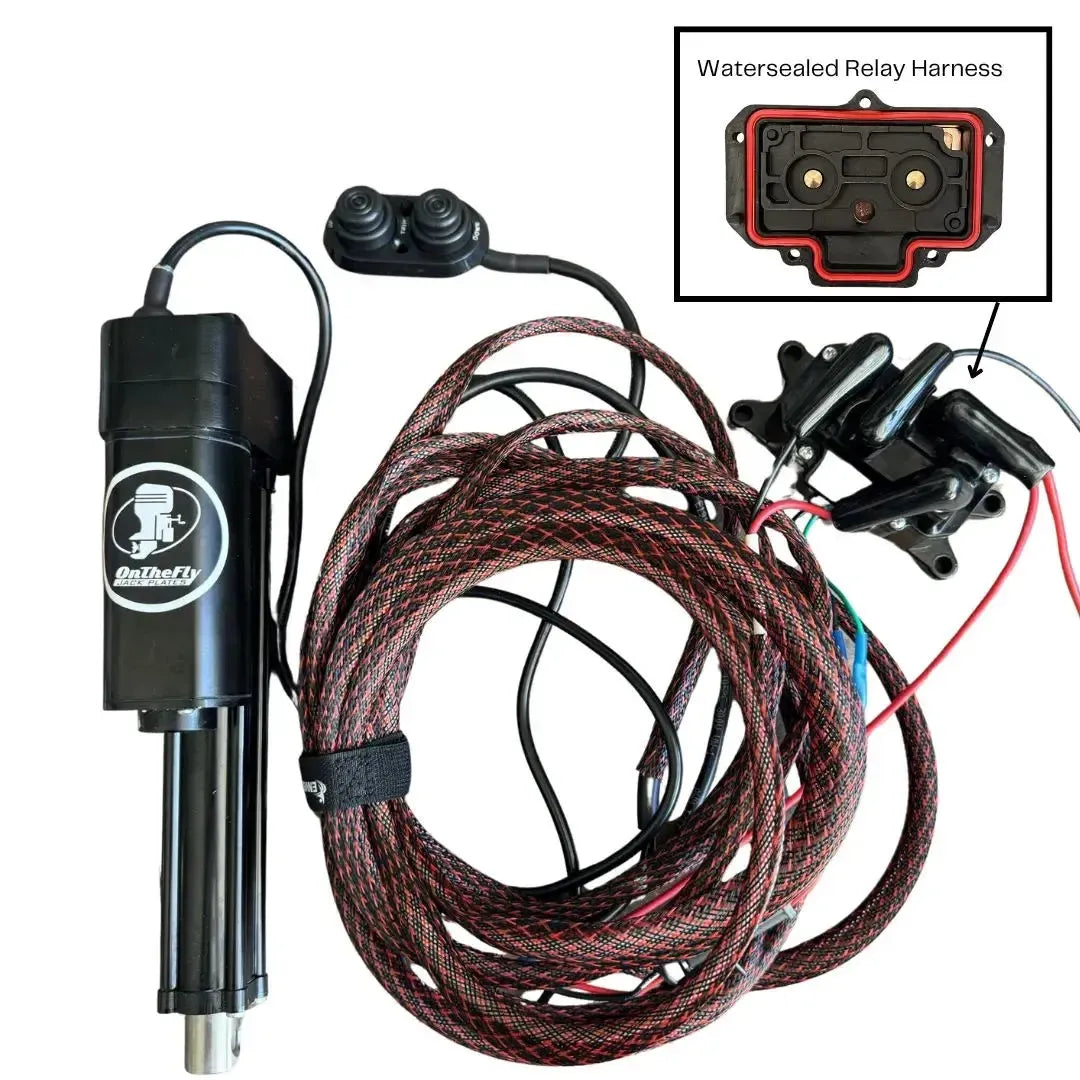

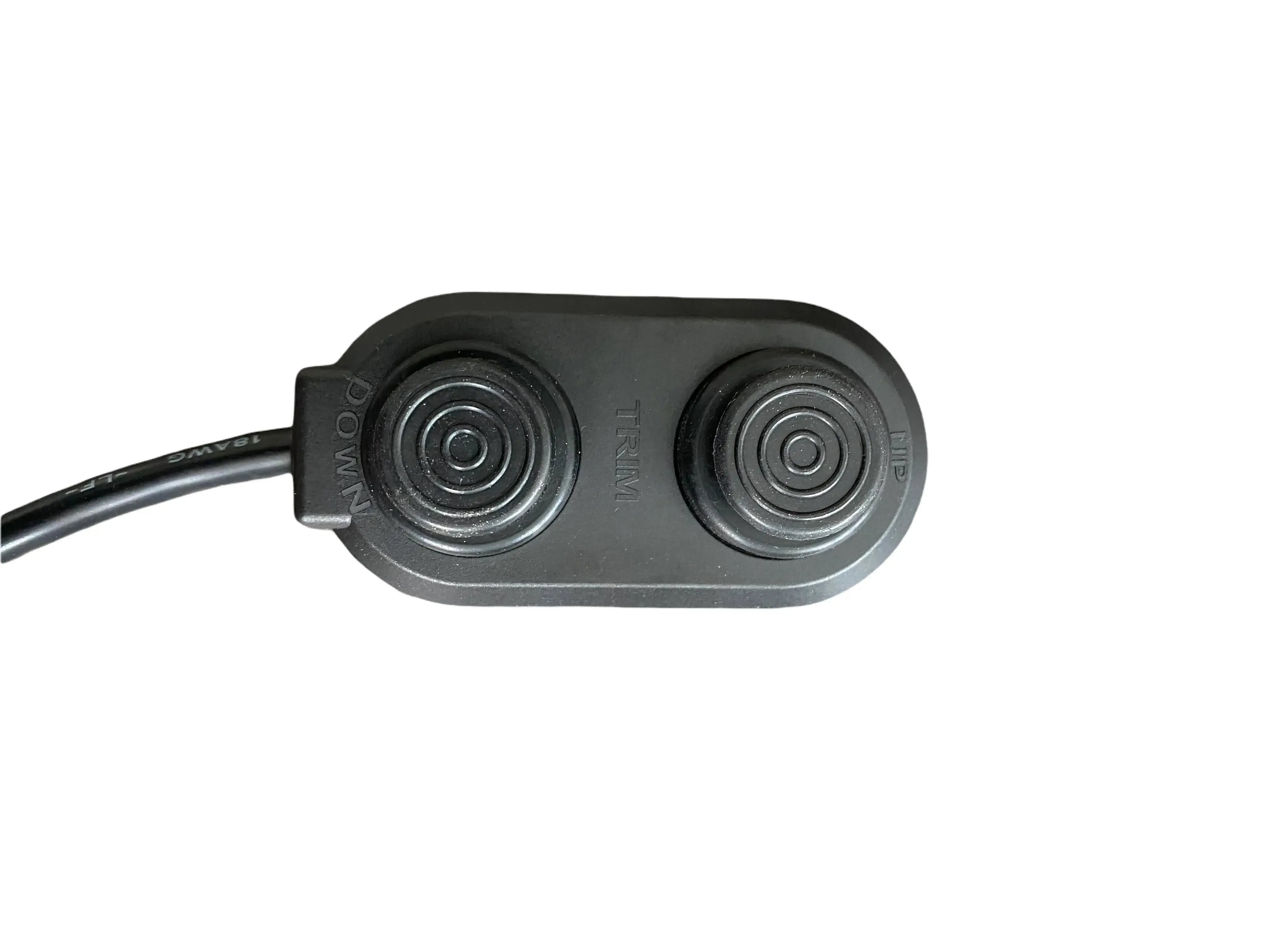

ACCESSORIES INCLUDED: Jack plate housing, On The Fly Electric Actuator, Up/Down switch, relay harness, and 10 feet of wiring from the electric actuator and up/down switch to the battery.
ACCESSORIES NOT INCLUDED: Transom mounting accessories are not included in purchase. On The Fly Jack Plates recommends
• 4 each ½”- 3 1/2” long bolts – stainless steel
• 4 each ½”- lock nuts – stainless steel
• 8 each 1/2’”-flat washers – stainless steel
• Motor Clamp Spacers
• 3 year warranty on the jack plate housing
• 1 year warranty on the jack
D
Excellence all around ![Derek Peterson review photo]()
I've been wholeheartedly impressed by the people at OnTheFly, I had a few issues along the way with my install and they were super urgent in helping me out and getting things working again. Now that everything is running it's hard to believe how quiet this all works, even with the engine off it's hard to tell it's operating other than how fast it actually operates.
For anyone installing themself make sure you don't miss that there is a small washer at 1 end of the bar spanning the bottom, and that you need to keep things clamped tight while setting up your holes in the transom. This is well documented in the instructions. Make sure you read them word for word though and you'll be off to the shallows and enjoying better holeshot in no time ;)
D
Excellent! Had to purchase shorter through bolts
Excellent! Had to purchase shorter through bolts because of the width of my transom. I mounted it with all four motor mount bolts.
Works perfectly!
R
I bought the whole kit easy to install ,fast and
I bought the whole kit easy to install ,fast and quiet looks cool too
J
So far so good
light weight and easy installation
J
Jack plate
Could not be happy with it
B
I have a ‘98 2 stroke 30hp manual trim/tilt. The motor mount is about 10 inches. Will the Large be overkill? Just thinking in case I want to upgrade to a motor in the future with electric trim/tilt.
Hello Bryce,
If you want to get a larger motor in the future, go with the Large size. Its not much larger than the Standard size, and only weighs 7lbs more than the standard. Only difference between the two is the width and weight it can handle. Thank you
A
Will this work for a 40horse yamibusi chinese motor ? 2stroke
Hello Audii,
Yes, it should work fine with your 40hp. To choose whether you need the larger unit or the small plate you will want to measure the total width of your motor mounting bracket on the back side outside the bolt hole pattern from edge to edge at the widest point. If it measures less than 10 3/4 inches, you can use our smaller plate. If it measures wider than 10 3/4 inches you will need our larger plate.
Thank you
R
This is a ( up and down electric jack plate) no tilt/trim for clamp on small outboards
Hello Ricky,
Thanks for reaching out! Yes, that's correct!
R
Will I have to drill new holes in the transom where the motor was mounted
Hello Rusty,
Good question! In most cases, you may need to drill new mounting holes depending on your current bolt pattern and setup. The OnTheFly Electric Mini Jack Plate comes pre drilled with holes spaced 8” across and 8¼” vertically on the transom side. Some customers can reuse their existing holes if they match the standard pattern, but drilling new holes is pretty common for the best fit and alignment. Be sure to properly seal any unused or newly drilled holes to help protect your transom long term.
Thank you!!!!
J
For a new 4 stroke Tohatsu 20 hp with electric tilt I’m interested in the electric jack plate. Do I need the large jack plate? Thank you.
Hello Jeff,
Yes! You will need a large jack plate for a new 4-stroke Tohatsu 20 HP with electric tilt. Thank you.
