OnTheFly Jackplates
OnTheFly Manual Jackplate with Install Kit (Complete Setup)
$599.00 - $699.00
599 ENTRIES for Boat Giveaway 🎟️
- #1 EPropulsion Dealer in the USA
- "Lowest Price Guaranteed"
- Fast & Free Shipping over $200: In Stock - Ships in 2-3 Days In Stock & Ready to Ship In Stock - Ships in 2-3 Days - ETA 3-5 Business Days - ETA 2 Weeks - ETA 1 Month
- Questions? Call an EPropulsion Expert: 404-720-3975
- #1 HydroTurf Dealer in the USA
- Lowest Price Guaranteed
- Free Shipping Over $200: In Stock - Ships in 2-3 Days In Stock & Ready to Ship In Stock - Ships in 2-3 Days - ETA 3-5 Business Days - ETA 2 Weeks - ETA 1 Month
- Questions? Call a HydroTurf Expert: 404-720-3975
- Lowest Price Guaranteed
- Pre-Order Now - Arrives in
- The Only USA Authorized Distributor
- Free & Fast Insured Shipping Over $200
- Questions? Call an AutoBoat Expert: 404-720-3975
- Lowest Price Guaranteed
- Made to Order - Ships in 1 week
- Free Shipping over $200
- Questions? Call an Expert: 404-720-3975
- Lowest Price Guaranteed
- Out of Stock In Stock and Ready to Ship On Backorder - ETA 1-2 Weeks
- In Stock and Ready to Ship On Backorder - ETA 1-2 Weeks
- Free Shipping over $200
- Questions? Call an Expert: 404-720-3975
Fastest Manual Jackplate Out There... Adjusts On The Fly
MEMORIAL DAY SALE EXCLUSIVE BUNDLE: For a limited time, get the complete setup! This special offer includes the OnTheFly Installation Kit (premium stainless steel transom mounting hardware and motor clamp spacers) absolutely free with your purchase. Everything you need for a seamless install is right in the box.
On The Fly Jack Plates are the fastest manual jack plates on the market. Our jack plates can be raised and lowered by a manual handle while on the water within seconds from top to bottom. The biggest benefit of our jack plate is TIME because every second counts out on the water! Cut your time adjusting your manual jack plate from 20 minutes to just seconds!

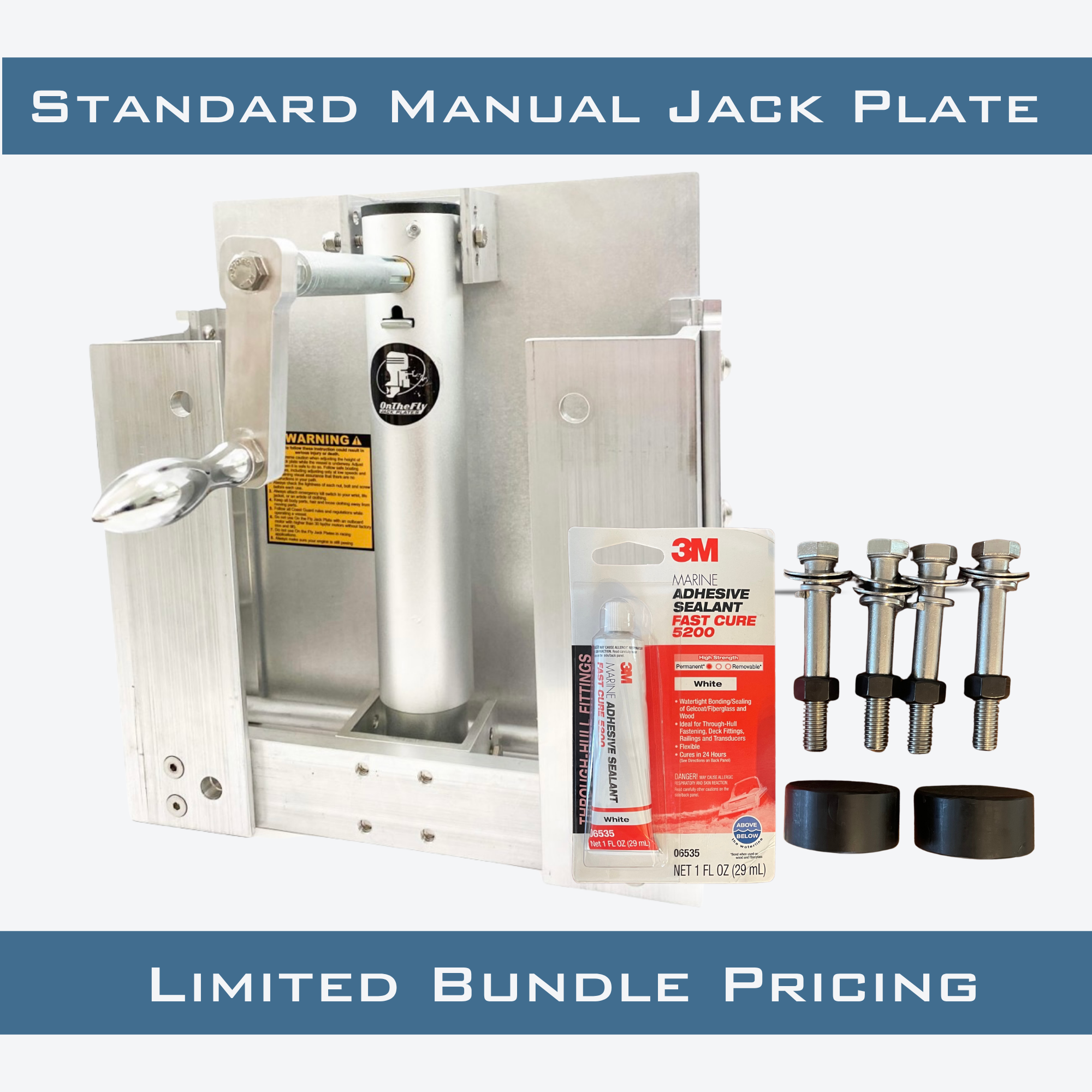

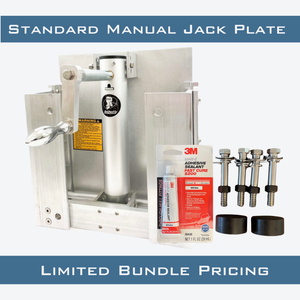

What's Included in This Complete Setup Bundle:
- OnTheFly Manual Jackplate Assembly
-

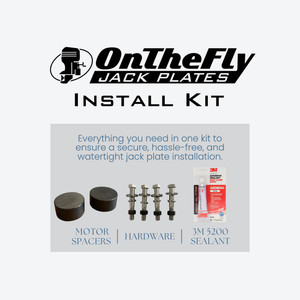

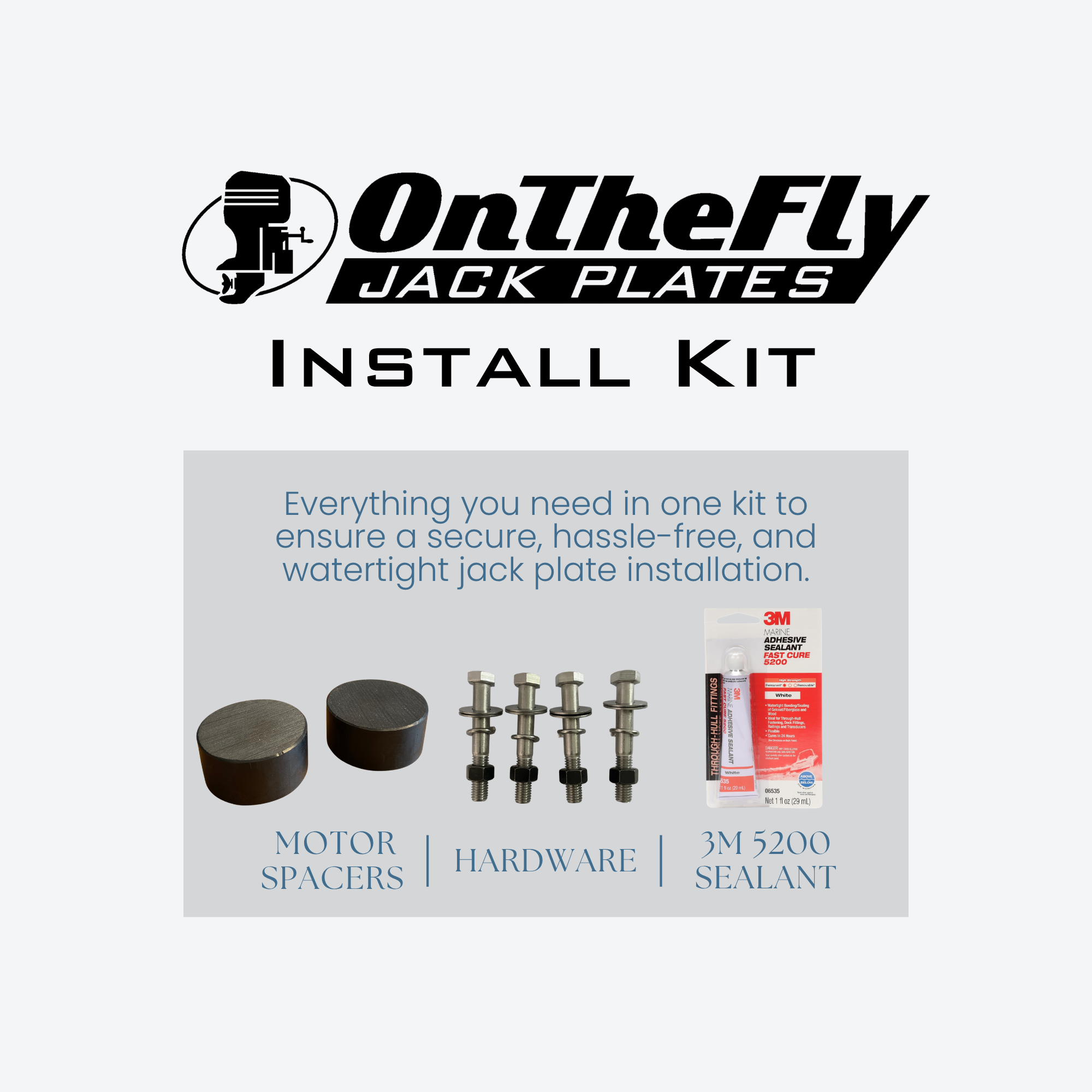

Premium Installation Hardware Kit:
- 4x Stainless Steel Bolts (1/2" x 3-1/2" long)
- 4x Stainless Steel Lock Nuts (1/2")
- 8x Stainless Steel Flat Washers (1/2")
- OnTheFly Motor Clamp Spacers
Upgraded Features:
- NEW Larger Gear Ratio: Features a higher gear ratio for effortless motor lifting—increasing the speed and ease of motor adjustment.
- MAX RISE (Travel): 5-1/2 inches of travel. Plus, depending on where you mount the jack, you can get up to 7-3/4 to 8 inches of rise.
- Built to Last: Jack plate housing is proudly made in the USA.
- Easy Setup: Pre-drilled for quick transom mounting.
Choose Your Size:
- Standard: For up to 30hp motors (150 lb. weight limit). Designed for motors without factory trim and tilt.
- Large: For up to 50hp motors (230 lb. weight limit). Designed for all motors WITH factory trim and tilt.
🔗 To View the Electric Switch Operated Version CLICK HERE
Inventory Status:
- Standard & Large Available In Stock – Ships out within 1-2 Days.
Warranty Details:
- 3-year warranty on the jack plate housing
- 1-year warranty on the jack
Specifications & Dimensions:
- Height: 10-1/2"
- Width (Transom Side): 12-1/2"
- Width (Motor Side): 13-1/4"
- Set Back: 5" (total length from transom side to the back of the motor slide)
- Motor Plate Height: 12-1/2"
- Motor Mounting Plate (Inside Brackets): 10-3/4"

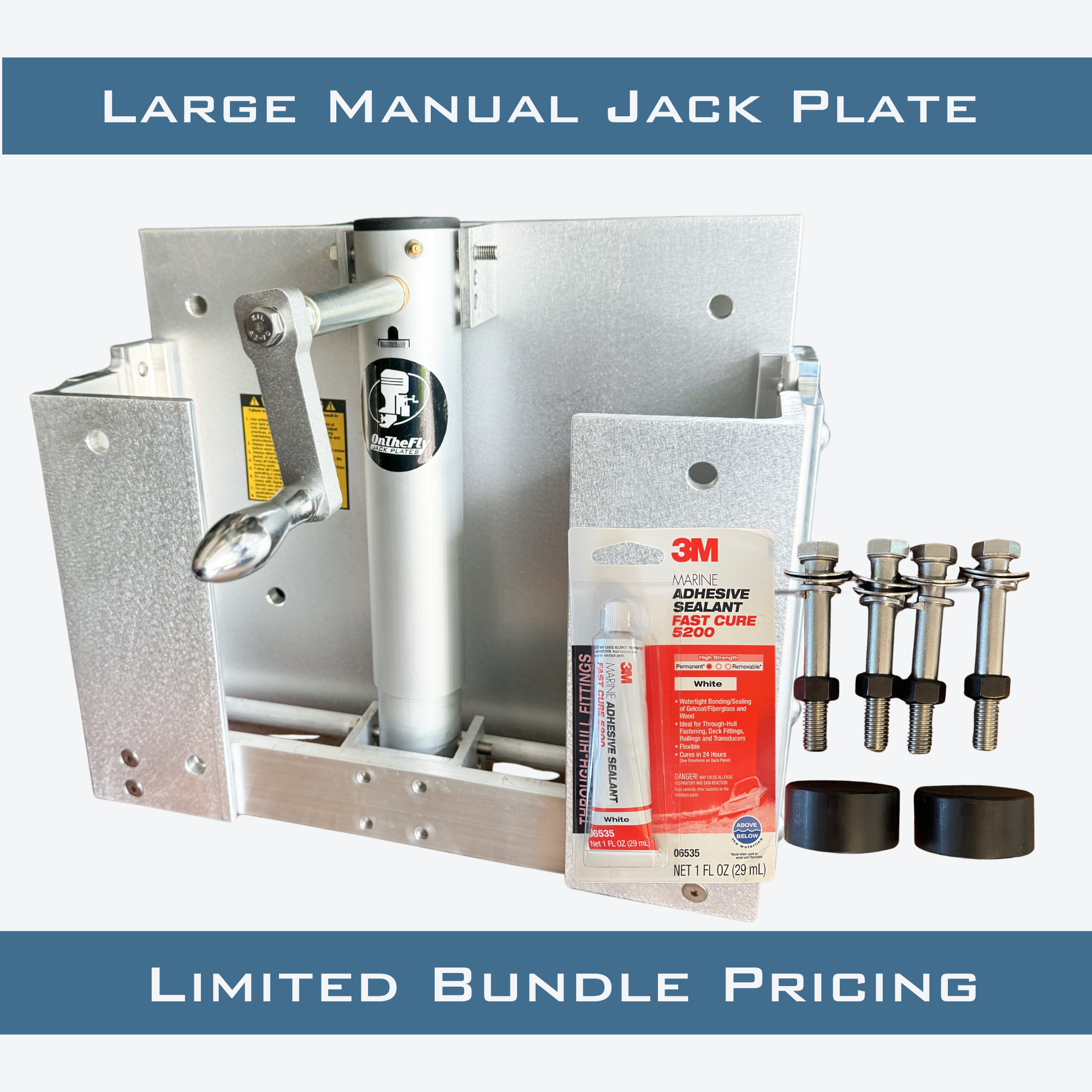

Large Jack Plate (Weight: 30 lbs.)
- Height: 10-1/2"
- Width (Transom Side): 16-1/8"
- Width (Motor Side): 17"
- Set Back: 5-1/4" (total length from transom side to the back of the motor slide)
- Motor Plate Height: 13-3/4"
***PATENTED***
