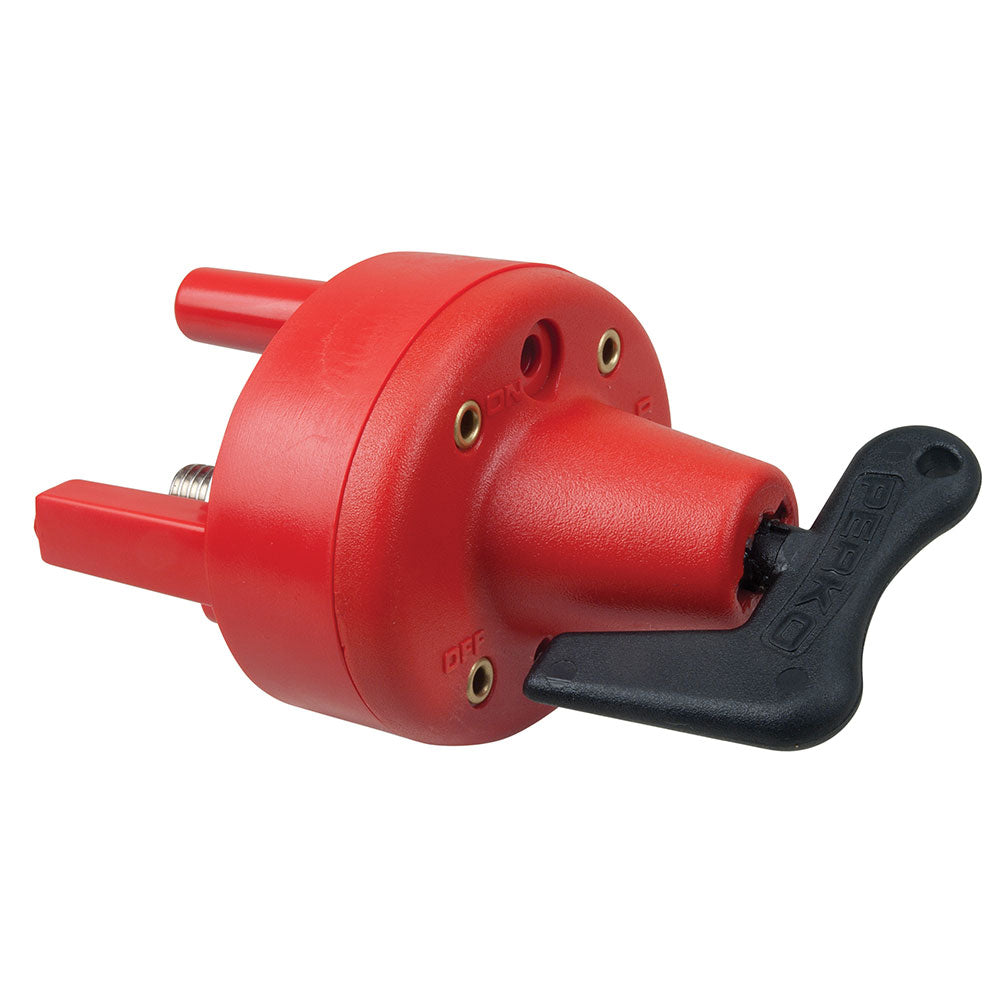

Perko Single Battery Disconnect Switch w-Mounting Ring & Legs - Bulkhead Mount
Single Battery Disconnect Switch w/Mounting Ring & Legs - Bulkhead Mount
The Perko Single Battery Disconnect Switch permits the battery to be shut off from the electrical system when the vessel is not in use. They can also serve as an emergency main disconnect switch in the event of an electrical problem.
The Single Battery Disconnect Switch is Ignition Protected.
Materials & Finish
Red polycarbonate polymer body
Black polymer actuator key
Nickel plated terminals
Small compact size
Unique oval shape mounts in a round hole
Removable actuator key adds additional security
Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start
For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
Face Dimensions: 3" x 2-1/2"
Manufacturer :Perko Manufacturer Part No :9621DP UPC :085226784262
