Max It Out LEDs 40" Folding LED Stern Light & Pro Mount Base Kit (004-WW-13-PM)

Rigid navigation lights bend or shatter the moment you run under low-hanging river limbs, negotiate flooded timber, or navigate brushy shorelines. The Max It Out LEDs 40" Folding LED Stern Light & Pro Mount Package (Model 004-WW-13-PM) provides an impact-absorbing navigation lighting solution built specifically for demanding shallow-water and Jon boat environments.

Engineered with a heavy-duty 360-degree fold-away mechanism and an unbreakable top lens, this 40-inch stern light flexes on contact with overhead obstacles and returns to position without damage. The included 1-inch Pro Mount base allows you to fold the light flat against your deck or gunwale for travel, while routing all electrical connections cleanly beneath the mount to keep your deck free of exposed, snag-prone wiring.

Built for Timber & Brush: 360° Impact-Deflecting Stern Light

• 360° Impact Deflection: The multi-directional flex base absorbs strikes from tree limbs, overhead debris, and dock overhangs, protecting your pole from bending or breaking.
• Unbreakable Top Lens: Ruggedized all-around white LED light head is built to endure harsh vibration and direct impacts without cracking or moisture intrusion.
• Integrated Fold-Over Storage: Loosen the integrated tightening handle to fold the 40-inch shaft flat along your gunwale for trailering, duck blinds, or low-clearance bridges—without detaching the light from the boat.
• High-Visibility 40-Inch Mast: Elevates your all-around white light above outboards, poling platforms, and gear to maintain clear, uninterrupted 360-degree visibility.

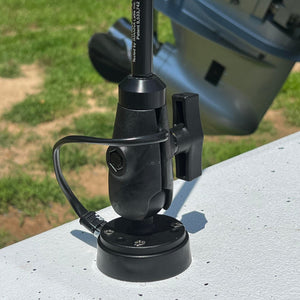

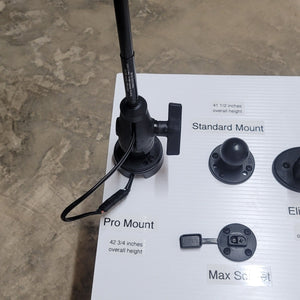

Clean Deck Wire Management: Concealed 1" Pro Mount Base

• Under-Base Wire Routing: Conceals power wire connections directly beneath the ball mount, shielding terminals from weather, UV rays, and foot traffic.
• Low-Profile 1-Inch Rise: Minimizes deck footprint on casting decks, transoms, or gunwales, preventing snagged fishing lines, nets, and tripping hazards.
• Complete Marine Hardware Included: Ships with mounting screws, washers, and nuts for direct installation on aluminum, fiberglass, or composite hulls.

Straightforward Installation Steps

1. Determine your mounting location on the gunwale, rear bench, or casting deck.
2. Mark and drill the outer fastener holes using the Pro Mount base as your guide.
3. Drill a center hole between the mounting holes to route your power wiring through the deck.
4. Pass the power cable through the center cutout beneath the base, make your electrical connections, and secure the assembly with the included stainless hardware.

Certified Maritime Specifications

• Model Number: 004-WW-13-PM
• Mast Height: 40 inches
• Base Height: 1 inch
• Visibility Rating: USCG 2 Nautical Miles (2nm)
• Maritime Standards: Meets ABYC A-16
• Coast Guard Approval: USCG 33 CFR 183.810
• Laboratory Certification: Type-tested by IMANNA Labs Inc. (01/14/21)
• Light Function: 360-degree all-around white navigation/anchor light
• Mounting Style: Surface ball-mount base with concealed under-deck wire pass-through

Package Contents

• (1) 40" Extreme LED Navigation Stern Light with Unbreakable Top Lens
• (1) 1" Pro Mount Wire-Management Base Assembly
• (1) Integrated Tightening Adjustment Handle
• (1) Complete Marine Mounting Hardware Kit (Screws, Nuts, and Washers)

Frequently Asked Questions

Will this stern light break if it strikes low-hanging tree branches?

No. The light is built with a flexible 360-degree impact mechanism and an unbreakable top lens that absorbs collisions with overhead branches, river timber, and dock overhangs without bending or snapping.

Do I have to remove the light from the boat when trailering?

No. Loosen the integrated tightening handle on the Pro Mount base, fold the 40-inch light flat along your gunwale or rear deck, and re-tighten the handle to secure it in place for travel.

How does the Pro Mount base conceal wiring?

By drilling a center hole directly between the outer mounting screws, you route your power wires straight through the deck underneath the base. The 1-inch housing completely covers the wiring, protecting it from moisture, foot traffic, and line snags.

Is this light legal for night boating?

Yes. The light provides USCG 2 Nautical Mile (2nm) 360-degree visibility, complies with ABYC A-16 standards, meets USCG 33 CFR 183.810 regulations, and has been type-tested by IMANNA Labs Inc.

Does this kit come with mounting hardware?

Yes. The package includes the 40" Extreme LED light, the 1" Pro Mount base with tightening handle, and all necessary mounting screws, nuts, and washers for installation.
