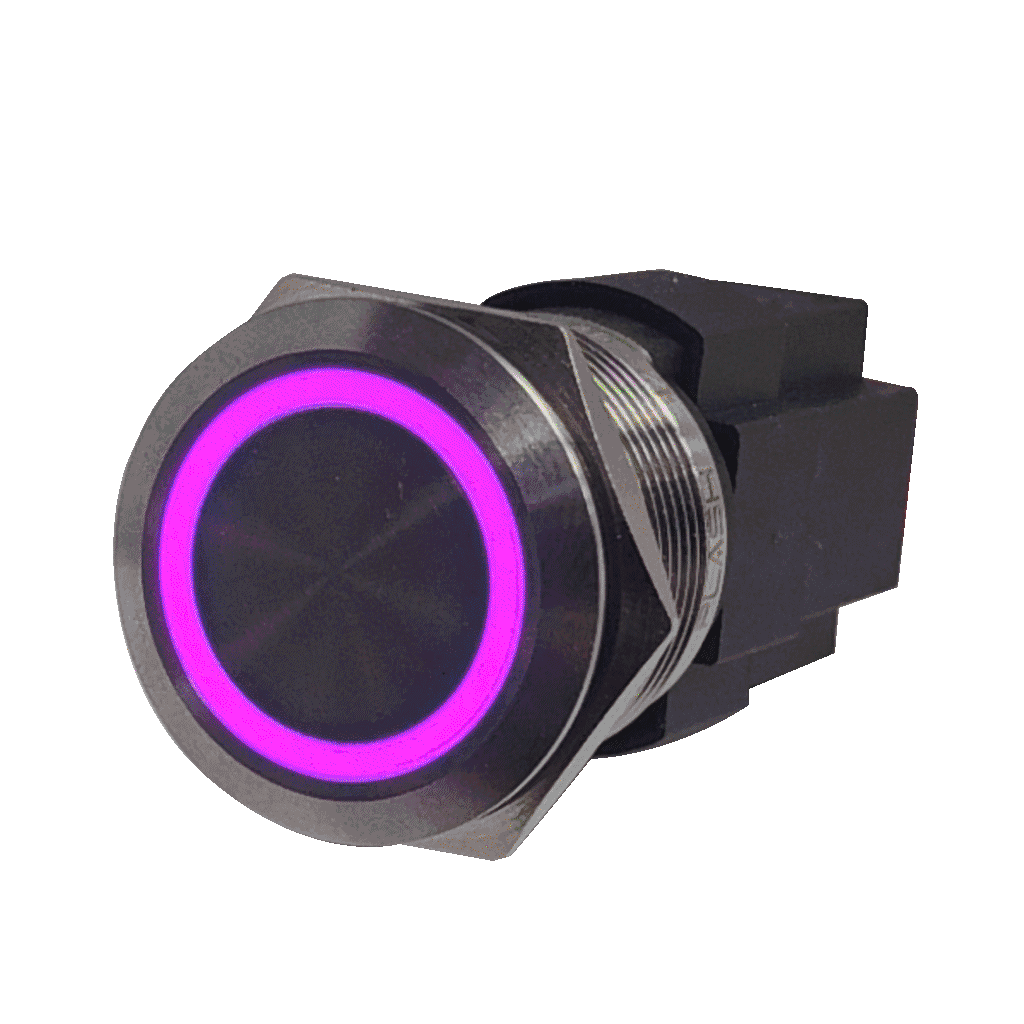

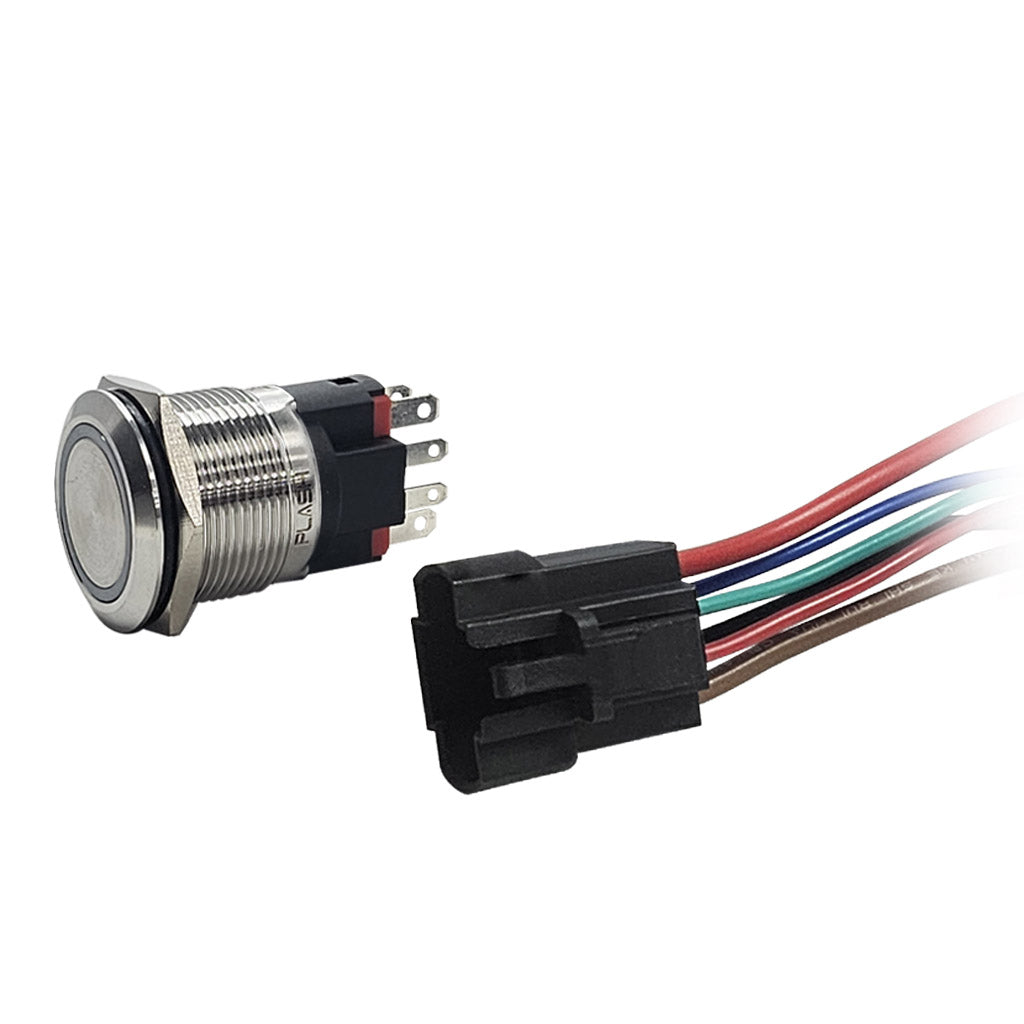

Marine Push Button Switch - RGB - 10A - Stainless Steel
$49.00
49 ENTRIES for Boat Giveaway 🎟️
- #1 EPropulsion Dealer in the USA
- "Lowest Price Guaranteed"
- Fast & Flat Rate Shipping: In Stock - Ships in 2-3 Days In Stock & Ready to Ship In Stock - Ships in 2-3 Days - ETA 3-5 Business Days - ETA 2 Weeks - ETA 1 Month
- Questions? Call an EPropulsion Expert: 404-720-3975
- #1 HydroTurf Dealer in the USA
- Lowest Price Guaranteed
- Free Shipping Over $200: In Stock - Ships in 2-3 Days In Stock & Ready to Ship In Stock - Ships in 2-3 Days - ETA 3-5 Business Days - ETA 2 Weeks - ETA 1 Month
- Questions? Call a HydroTurf Expert: 404-720-3975
- Pre-Order Now - Arrives in
- The Only USA Authorized Distributor
- Free & Fast Insured Shipping Over $200
- Questions? Call an AutoBoat Expert: 404-720-3975
- Lowest Price Guaranteed
- Made to Order - Ships in 1 week
- Free Shipping over $200
- Questions? Call an Expert: 404-720-3975
- Lowest Price Guaranteed
- Out of Stock In Stock and Ready to Ship On Backorder - ETA 1-2 Weeks
- In Stock and Ready to Ship On Backorder - ETA 1-2 Weeks
- Free Shipping over $200
- Questions? Call an Expert: 404-720-3975
FEATURES:
- Rated for 10A
- Stainless Steel Housing - No Rust
- Simply wire according to an RGB Controller for your choice of color options such as color changing Fade, Flash/Strobe, or a single color such as hot pink or teal.
- 22mm (7/8") Diameter Button - Easier to Push Compared to 19mm
- 25mm (1") Outside Diameter
- Works on 12V Systems

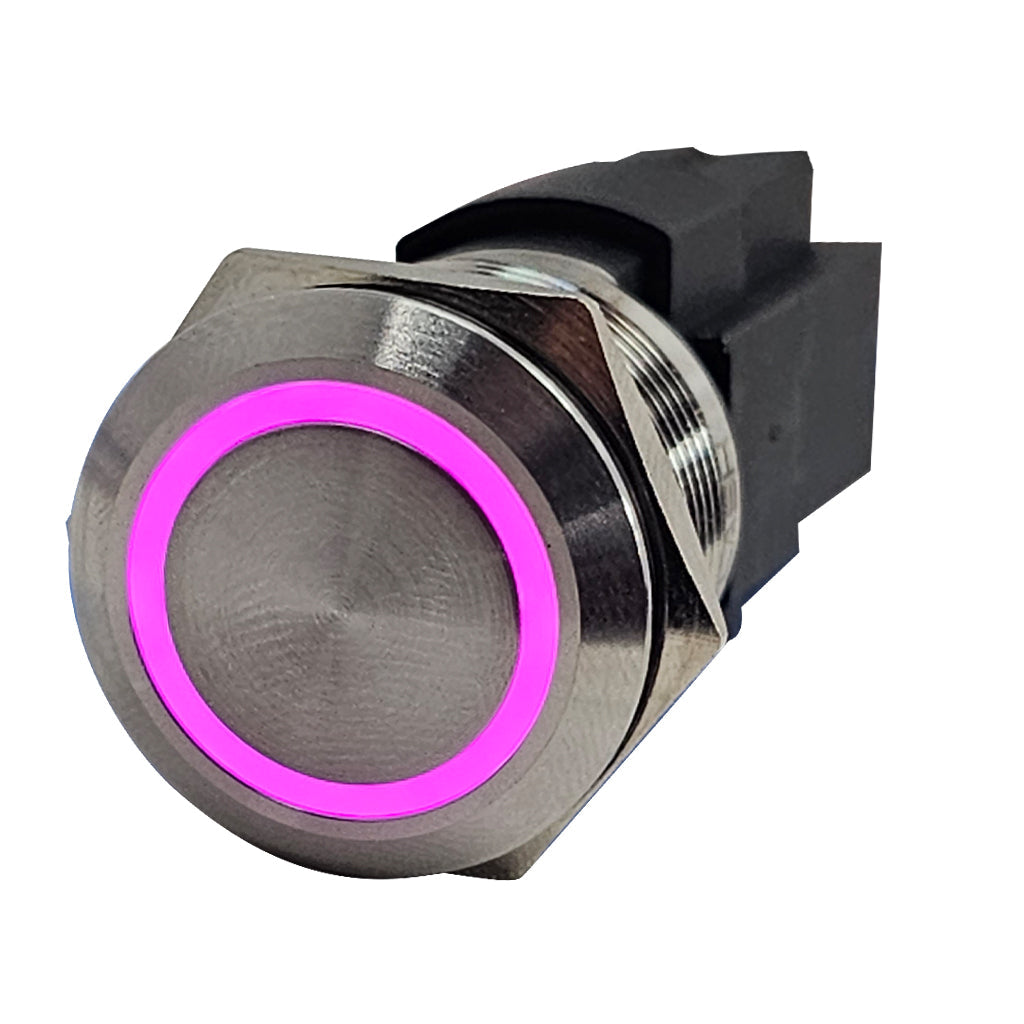

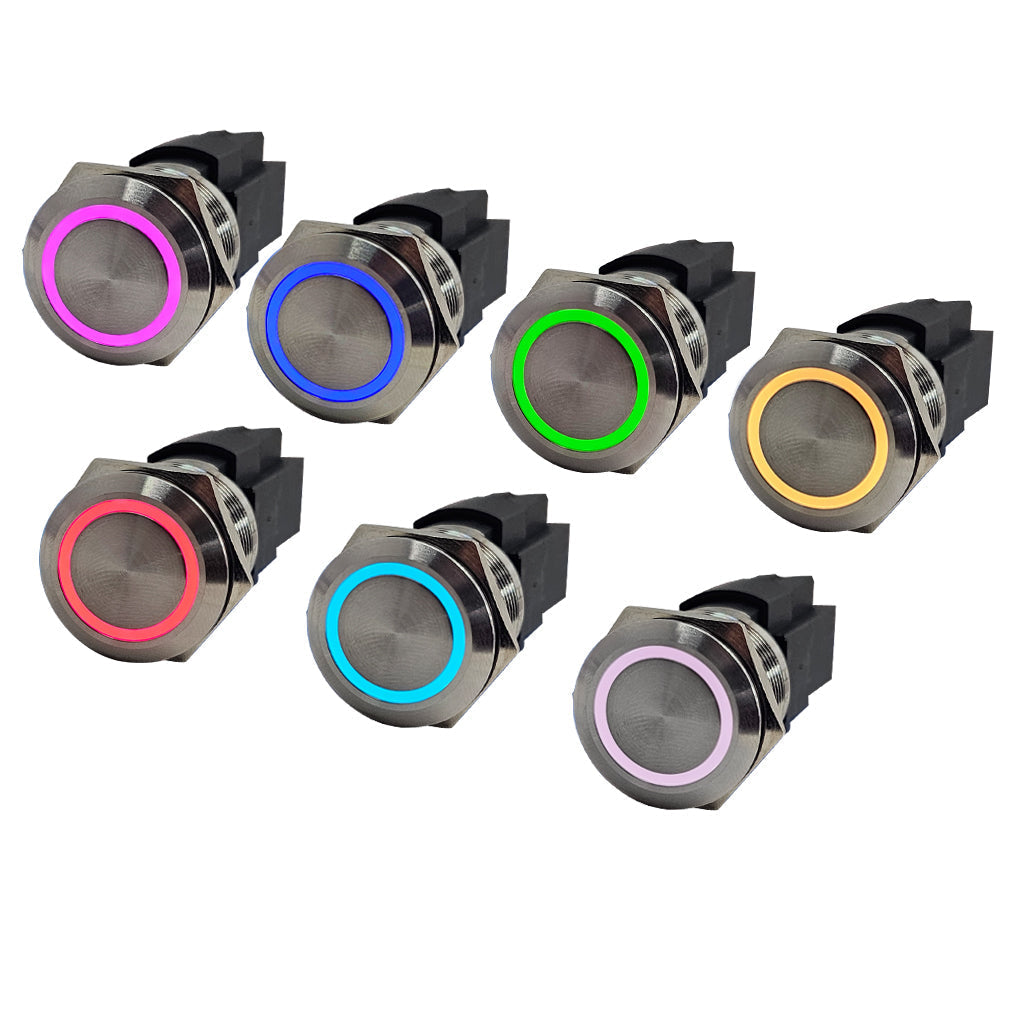

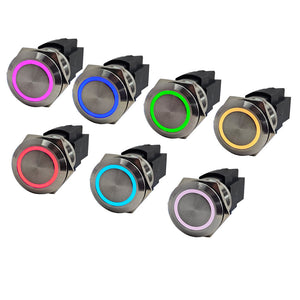

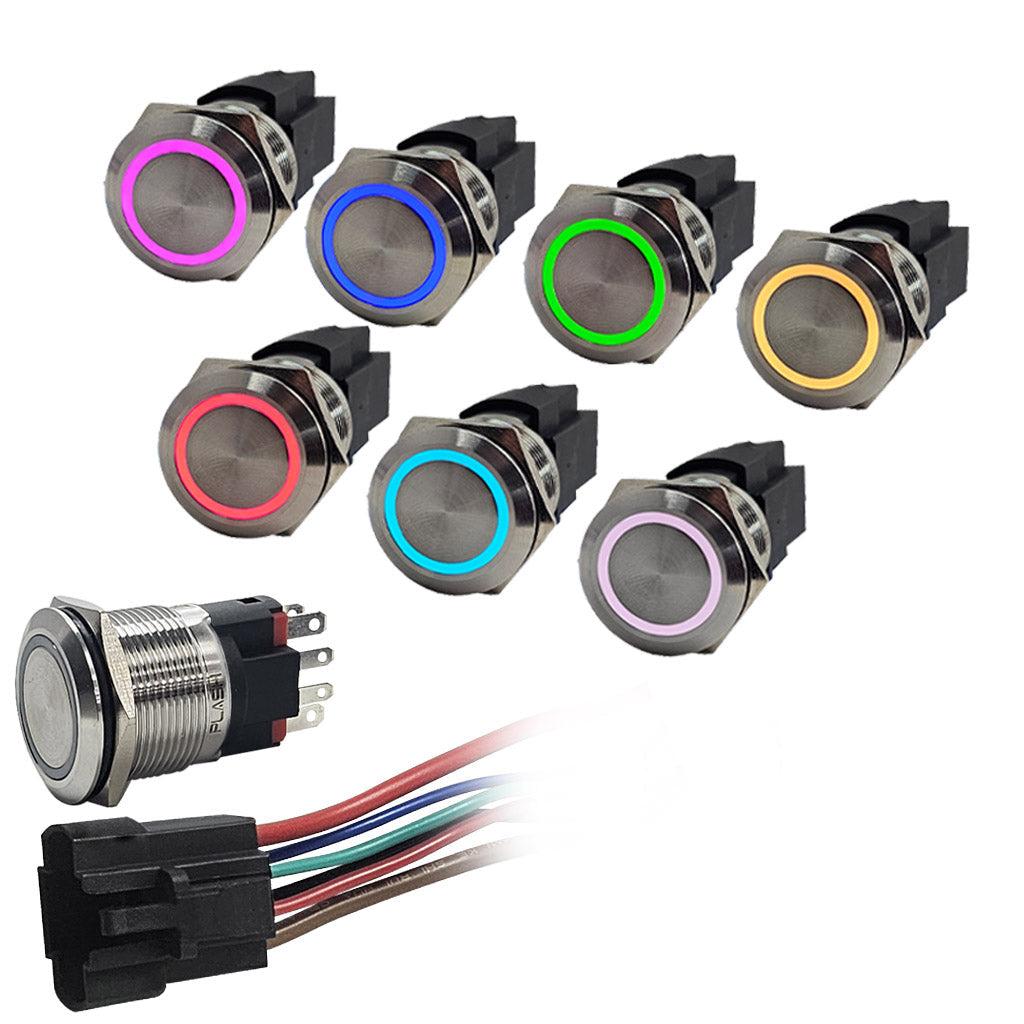

- LED Backlit Ring in your Choice of Colors
- IP67 Rated - Waterproof
- Silky Smooth Movement
- Rated for 150,000 Cycles (Presses)
- Removable Clip for Wiring Harness

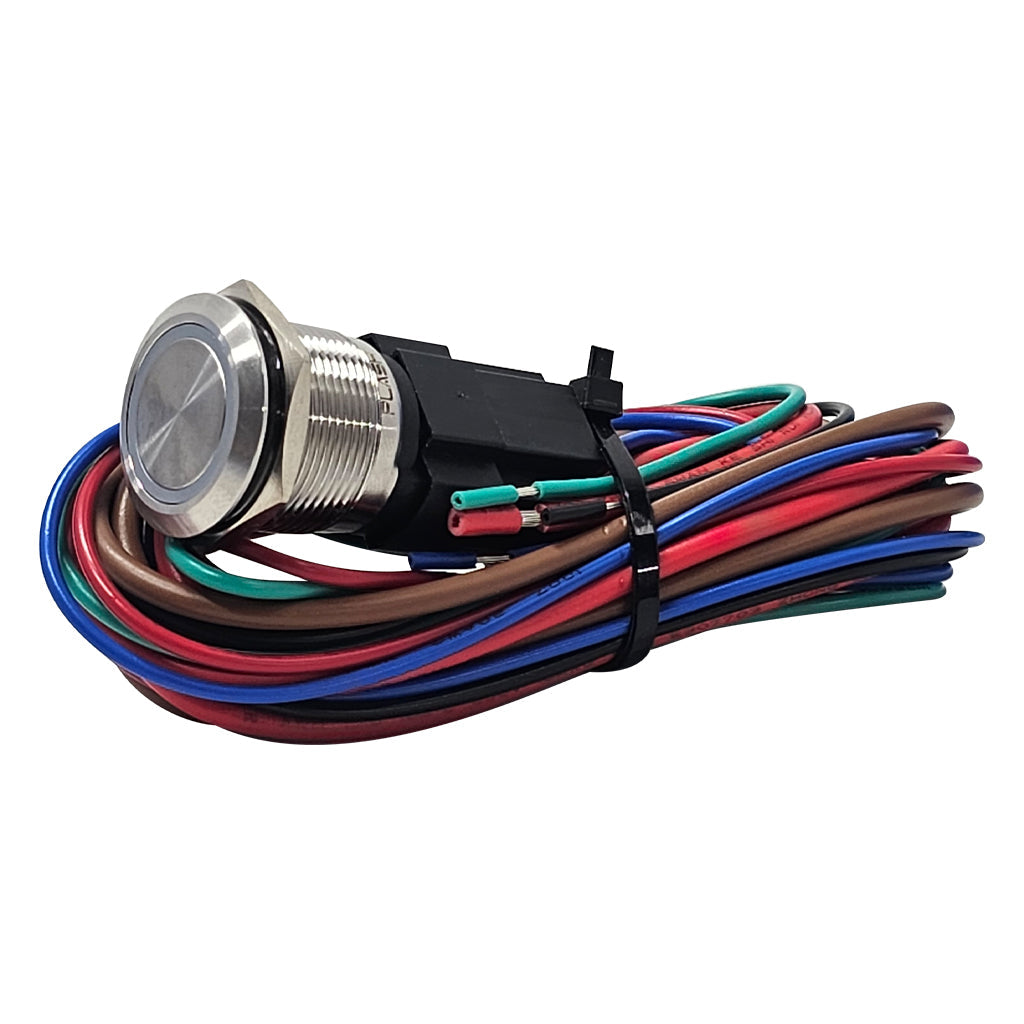

- 3ft of Wiring for a Simple Installation
- Mounts in panels up to 3/8" thick
- Fits a 7/8" Hole
- Plash Limited Lifetime Warranty
WIRING:
This push button switch has two functions:
A) Illuminating the LED Ring
B) Controlling the Equipment that it is Connected to (such as a bilge pump or light bar).
A) LED Illuminated Ring on the Switch:
The below 4 wires connect to the RGB Controller --> **Sold Separately
- BLACK 18 AWG Wire = Positive V+ (connects to RGB controller)
- RED 18 AWG Wire = Ground (connects to RGB controller)
- BLUE 18 AWG Wire = Ground (connects to RGB controller)
- GREEN 18 AWG Wire = Ground (connects to RGB controller)
B) Control of your Load:
- RED 14 AWG Wire = Positive V+ IN from Fuse Panel (verify the fuse is correctly sized for your load)
- BROWN 14 AWG Wire = Positive V+ OUT to Load (example: connects to bilge pump)

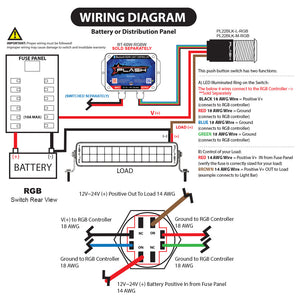

* For wiring diagram see images.
